LIGHT UPS

The LIGHT UPS series based on a transformer-less design is managed with different kind of technologies:
- ON-LINE  technology: COSMO line ups
- LINE INTERACTIVE technology in sine wave: INTERSINE line ups
- LINE INTERATIVE technology in step-wave: BLAZE line ups

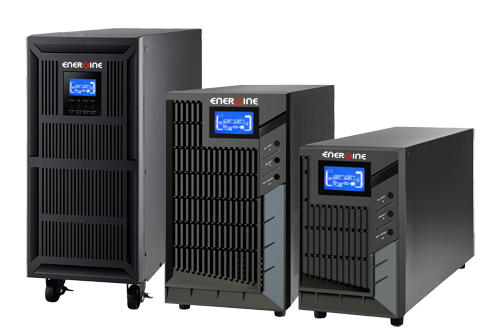

COSMO ups line
The COSMO range is available in  models from 1KVA to 10KVA with on-line double conversion technology offering reliability and protection for sensible informatic applications.
For long runtime applications, the standard models can be fitted with matching battery extension packs which also include additional battery boost chargers.
In terms of communications, each Cosmo ups has a built-in mimic panel with an LCD to show input and output voltages, and battery charge status.
The inverter is fully microprocessor controlled and constructed to achieve the highest levels of operating efficiency and configuration options.
This ups has USB communication ports and RS232 as standard, with a built-in expansion slot for SNMP, with the possibility of a parallel functioning of all ports.

This line is available in 1/1 and 3/1 configuration, in tower or rack version.

INTERSINE ups line
The INTERSINE range is available in models from 750VA to 2000VA with sinusoidal digital technology.
This ups are a power solution between the on-line ups and the step-wave ups, where it is not required an on-line technology but the output sine wave is a must.
Its functioning is like the next  BLAZE ups series with line interactive technology but granting a sinewave form to supply the load.
The INTERSINE range is the ideal solution for the protection of peripheral network devices and network backup systems.

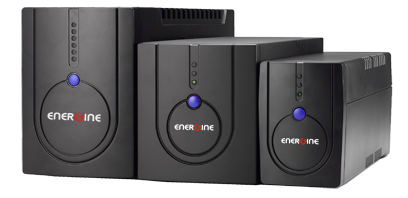

BLAZE ups line
The BLAZE series includes models from 650VA to 2000VA and uses digital Line Interactive (VI) technology.
The load is powered from the mains through an AVR to stabilise brownout, sag and surge voltages, and EMI filters to suppress spikes and transients. When the mains fails, the load is powered by the inverter with a pseudo sinewave to provide sufficient runtime for computer system shutdown.
Main application on PC.



COSMO UPS LINE - MAIN FEATURES

    On-line double conversion technology
    Wide input voltage range: 100V - 300V
    Output power factor 0.8
    Wide LCD display for easy unit control
    Programmable output sockets
    Emergency Power Off (EPO) contact on board
    Static swtich by-pass
    Manual by-pass on board for 6KVA and 10KVA models
    Redundancy parallel functioning till 3units for 6KVA and 10KVA models
    Communication ports: USB + RS232 (SNMP option)
    Contemporary functioning of USB + RS232 + SNMP
    Cabinet available: TOWER - RACK



INTERSINE UPS LINE - MAIN FEATURES

    Line interactive technology
    Sine wave output: pure sine wave
    Microprocessor control
    Mains stabilization with AVR
    Auto-restart when mains recover
    Battery charger functioning also with ups
    Cold-start function (ups swtiches on without mains)
    Communication port: USB (RS232 option)
    Shut-down software for all operating systems



BLAZE UPS LINE

    Line interactive technology
    Sine wave type: simulated sinewave ("step-wave")
    Compact dimensions
    Microprocessor control
    Mains stabilization with AVR
    Auto-restart when mains recover
    Battery charger functioning also with ups off
    Cold-start function (ups switches on without mains)
    Communication ports: USB/RS232 and RJ-11 phone line protection
    Shut-down software for all operating systems

DOWNLOAD
MODELS POWER BACK UP TIME BATTERIES WEIGHT KG TOWER VERSION
(LxDxH)
UPS ON LINE DOUBLE CONV.
COSMO 1000 1000VA 15 MIN 3X12V 7 14 145 x 397 x 220
COSMO 1500 1500VA 10 MIN 3X12V 9AH 15 145 x 397 x 220
COSMO 2000 2000VA 14 MIN 6X12V 7 28 190 x 421 x 318
COSMO 3000 3000VA 15 MIN 6X12V 9AH 30 190 x 421 x 318
COSMO 6000 6000VA 20 MIN 20X12V 7 81 250 x 592 x 576
COSMO 10000 10000VA 10 MIN 20X12V 9AH 85 250 x 592 x 576
LINE INTERACTIVE SINEWAVE
INTERSINE 750 750VA 10 MIN 1X12V 9AH 7 146 x 350 x 160
INTERSINE 1000 1000VA 10 MIN 2X12V 7AH 10 146 x 350 x 160
INTERSINE 1500 1500VA 10 MIN 2X12V 9AH 12 146 x 397 x 205
INTERSINE 2000 2000VA 10 MIN 2X12V 10AH 13 146 x 397 x 205
LINE INTERACTIVE STEPWAVE
BLAZE 650 650VA 10 MIN 1X12V 7AH 4 100 x 287 x 142
BLAZE 850 850VA 10 MIN 1X12V 9AH 5 100 x 287 x 142
BLAZE 1000 1000VA 10 MIN 2X12V 7AH 8 146 x 350 x 160
BLAZE 1500 1500VA 10 MIN 2X12V 9AH 11 146 x 397 x 205
BLAZE 2000 2000VA 8 MIN 2X12V 9AH 12 146 x 397 x 205
