SINE lineRANGE:
from: 650W
to: 6300W
SINE
Industrial DC/AC inverter range with 24V /48V /110Vdc input and a power range from 650W to 6300W, characterized from high reliability, robust mechanical design and galvanic isolation for the most demanding environments.
The SINE series converts a DC input voltage into a perfect sinusoidal single-phase output to provide power to critical AC loads. A wide input voltage range allows the possibility to accept different and not stabilized dc voltages without the need of a dc/dc converter.
48Vdc: 39Vdc - 80Vdc
110Vdc: 88Vdc - 145Vdc
The presence of 4000V galvanic isolation allows high safety to the load connected and more reliability to the units.
The SINE systems are also the right answer for motion-systems thanks to their robust mechanics and the possibility to apply anti-shocking treatments.
The unit project and manufacturing total control allows the realization of fully customized electrical and mechanical solutions on demand.
Power range: from 650W to 6300W
Standard input available: 48Vdc - 110Vdc
Different input on request: 12Vdc - 24Vdc, and others
Output: 230Vac 50/60Hz
Different output voltages available on request
Wide input voltage range
Output pure sine wave
4000V galvanic isolation: output toroidal transformer included as standard

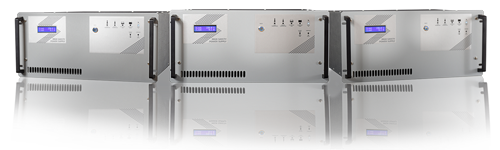

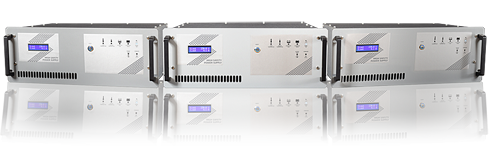

Robust mechanical design, available in rack, tower or wall version
LCD display with blue light on request
User-friendly front panel to easily check the ups functioning and status
By-pass on emergency input line on request
DOWNLOAD
| MODELS | INPUT VOLTAGE | POWER | WEIGHT KG | RACK VERSION (UNIT LxDxH) |
TOWER VERSION (LxDxH) |
|---|---|---|---|---|---|
| SINE 48-3 | 39-60VDC | 650W | 19 | 3U - 480 x 443+43 x 130 | 155 x 383 x 316 |
| SINE 48-4 | 39-60VDC | 900W | 30 | 4U - 480 x 443+53 x 176 | 243 x 585 x 482 |
| SINE 48-5 | 39-80VDC | 1100W | 32 | 4U - 480 x 443+53 x 176 | 243 x 585 x 482 |
| SINE 48-6 | 39-80VDC | 1350W | 35 | 4U - 480X443+53X176 | 243 x 585 x 482 |
| SINE 48-7 | 39-80VDC | 1700W | 40 | 5U - 480X443+53X221 | 243 x 585 x 482 |
| SINE 48-9 | 39-80VDC | 2100W | 45 | 5U - 480X443+53X221 | 243 x 585 x 482 |
| SINE 48-11 | 39-80VDC | 2500W | 52 | 5U - 480X443+53X221 | 243 x 585 x 482 |
| SINE 48-15 | 39-80VDC | 3375W | 60 | 5U - 480X643+53X221 | 355 x 782+53 x 378 |
| SINE 48-18 | 39-80VDC | 4050W | 66 | 5U - 480X643+53X221 | 355 x 782+53 x 378 |
| SINE 48-22 | 39-80VDC | 4950W | 72 | 5U - 480X643+53X221 | 355 x 782+53 x 378 |
| SINE 110-3 | 88-145VDC | 650W | 20 | 3U - 480X443+43X130 | 155 x 383 x 316 |
| SINE 110-4 | 88-145VDC | 900W | 30 | 4U - 480X443+53X176 | 243 x 585 x 482 |
| SINE 110-5 | 88-145VDC | 1100W | 32 | 4U - 480X443+53X176 | 243 x 585 x 482 |
| SINE 110-6 | 88-145VDC | 1350W | 35 | 4U - 480X443+53X176 | 243 x 585 x 482 |
| SINE 110-7 | 88-145VDC | 1700W | 40 | 5U - 480X443+53X221 | 243 x 585 x 482 |
| SINE 110-9 | 88-145VDC | 2100W | 45 | 5U - 480X443+53X221 | 243 x 585 x 482 |
| SINE 110-11 | 88-145VDC | 2500W | 50 | 5U - 480X443+53X221 | 243 x 585 x 482 |
| SINE 110-12 | 88-145VDC | 3000W | 55 | 5U - 480X443+53X221 | 243 x 585 x 482 |
| SINE 110-15 | 88-145VDC | 3375W | 60 | 5U - 480X643+53X221 | 355 x 782+53 x 378 |
| SINE 110-18 | 88-145VDC | 4050W | 66 | 5U - 480X643+53X221 | 355 x 782+53 x 378 |
| SINE 110-22 | 88-145VDC | 4950W | 72 | 5U - 480X643+53X221 | 355 x 782+53 x 378 |
| SINE 110-27 | 88-145VDC | 6300W | 78 | 5U - 480X643+53X221 | 355 x 782+53 x 378 |
