    MICRON line
    Compact Industrial DC/AC INVERTERS
    Industry
    Telecommunication
    Railways
    Microwave links
    Navy
    Automation
    RANGE:
    from: 100W
    to: 300W

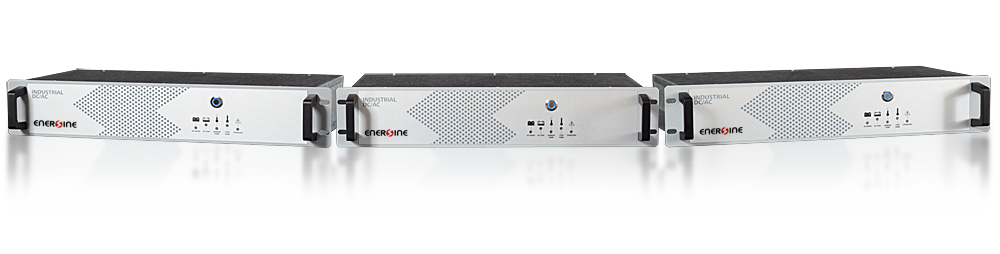

MICRON

Industrial DC/AC COMPACT inverter range with 48V /110Vdc input and a low power of 100W and 300W, characterized from really small dimensions, reliable technology and galvanic isolation for the most demanding environments. Mostly dedicated to telecommunication field.

The MICRON series has been projected with the same characteristic and reliability of the SINE series; it converts a DC input voltage into a perfect sinusoidal single-phase output to provide power to critical AC loads. A wide input voltage range allows the possibility to accept different and not stabilized dc voltages without the need of a dc/dc converter.
48Vdc: 39Vdc - 80Vdc
110Vdc: 88Vdc - 145Vdc
The presence of 4000V galvanic isolation allows high safety to the load connected and more reliability to the units.
The MICRON systems are also the right answer for telecommunication field and critical loads.
The unit project and manufacturing total control allows the realization of fully customized electrical and mechanical solutions on demand.



    Powers: 100W and 300W
    Standard input available: 48Vdc - 110Vdc
    Output: 230Vac 50/60Hz
    Different output voltages available on request
    Wide input voltage range
    Output pure sine wave
    4000V galvanic isolation: output toroidal transformer included as standard
    Robust mechanical design even with such small dimensions
    User-friendly front panel to easily check the ups functioning and status

DOWNLOAD
MODELS INPUT VOLTAGE POWER WEIGHT KG RACK VERSION
(UNIT LxDxH)
TOWER VERSION
(LxDxH)
MICRON 48-04 39-70VDC 100W 6 2U - 480X210X90 440 x 210 x 90
MICRON 48-1 39-70VDC 300W 8 2U - 480X210X90 440 x 210 x 90
MICRON 110-04 89-145VDC 100W 6 2U - 480X210X90 440 x 210 x 90
MICRON 110-1 89-145VDC 300W 8 2U - 480X210X90 440 x 210 x 90
