    TRITON line
    THREE-PHASE UPS - "Trafoless design"
    IT Networks
    Enterprise Servers
    Telecommunications
    Industrial processes
    RANGE:
    from: 10KVA
    to: 200KVA

TRITON

Enersine TRITON series are true on-line double conversion technology ups used to protect the load against blackout, brownout and all power quality disturbances.
The most advanced features are the rectifier and the inverter with high frequency switching IGBT, giving a very low input THD (less than 3%) and the input sinusoidal current absorption with power factor 1.
Thanks to the ‘TRAFOLESS’ design, these ups have a very high efficiency, more than 95%, with very compact dimensions for all the power range. Parallel redundancy is up to 8 units. Flexible and versatile, the TRITON series are available from 10KVA to 200KVA, with different back up times on the customer requirements.



TRITON 10KVA to 30KVA main features

    OUTPUT POWER FACTOR φ 0.8
    WIDE INPUT RANGE (110V -300V)
    PROGRAMMABLE OUTPUT SOCKETS
    Thanks to the programmable sockets, the user can easily control part of the load connected to the UPS.
    50/60HZ FREQUENCY CONVERTER FUNCTION
    the unit fixes the output 50/60Hz frequency independently from the input frequency, excluding the by-pass
    POWER FACTOR CORRECTION
    on each phase improves the system efficiency with subsequent cost saving

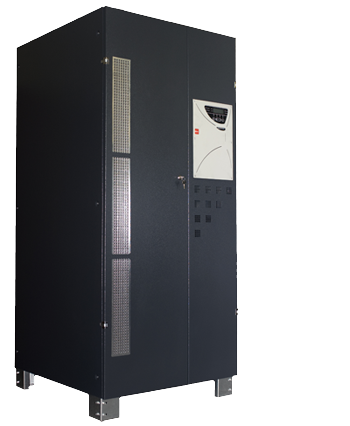

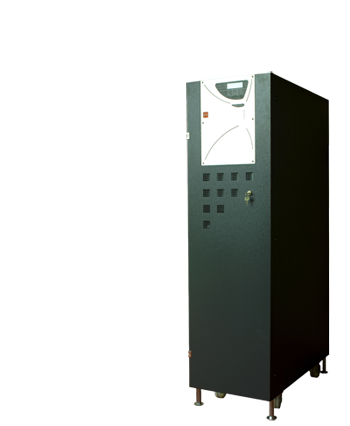

TRITON 60KVA to 200KVA main features

    IGBT semiconductor technology
    POWER FACTOR CORRECTION
    improves the system efficiency with subsequent cost saving
    HIGH EFFICIENCY
    low distortion sinusoidal current and output voltage
    DIGITAL CONTROL
    LIQUID COOLING SYSTEM (on 120KVA to 200KVA models)
    REDUNDANCY PARALLEL FUNCTIONING up to 8 units through fiber optics
    Emergency Power Off (EPO) function
    Service access and connection cables from front side
    RS232 serial port (SQP protocol)
    RS485 seria port (MODBUS)
    ETHERNET CONNECTIONS: snmp, http, Modbus
    Managing software for most common platforms
    UPS monitor via modem
    Dry contacts for signals and alarms
    LCD display 4 rows x 20 columns and 4 buttons + local EPO
    REMOTE PANEL (on request)

DOWNLOAD
MODELS POWER BACK UP TIME BATTERIES WEIGHT KG TOWER VERSION
(LxDxH)
TRITON 10 10KVA 10 MIN 20X12V 9AH 105 250 x 815 x 826
TRITON 20 20KVA 10 MIN 40X12V 9AH 164 250 x 815 x 826
TRITON 30 30KVA 10 MIN 60X12V 9AH 234 250 x 815 x 826
TRITON 60 60KVA ON REQUEST - 220 410 x 830 x 1510
TRITON 80 80KVA ON REQUEST - 250 410 x 830 x 1510
TRITON 100 100KVA ON REQUEST - 270 410 x 830 x 1510
TRITON 120 120KVA ON REQUEST - 450 800 x 840 x 1800
TRITON 160 160KVA ON REQUEST - 500 800 x 840 x 1800
TRITON 200 200KVA ON REQUEST - 550 800 x 840 x 1800
