    RANGE:
    from: 660W
    to: 6600W

EMERGENCY LIGHT DEVICES - EN50171

Emergency Power Supplies presented in two different series for security and centralized lighting systems, fire safety implants.
LIDE and LIDE PLUS series are projected to be compliant to EN 50171; the PLUS series have on board isolating transformers and insulation controllers in order to be used on markets under IT regime.


EN 50171 - LIDE and LIDE PLUS peculiar features:

BATTERIES:
10 years expected life

BATTERY CHARGER:
dedicated battery charger with fast recharging time: 80% in 12 hours.

INVERTER SECTION
the inverter is able to supply the 120% load permanently.
Protection against polarity inversions and overload.

CABINET:
Protection degree IP 20, with metal cabinet against fire and high heat.

FUNCTIONING MODALITIES:


1. SWITCHING MODE:
the load is supplied directly through the BY-PASS.
When mains failure occur the device switch the load from the by-pass to the inverter with a switching time of max 0.5s (required by the norm). The necessary energy is provided by the battery pack.
2. PERMANENT MODE:
the load is supplied permanently by the inverter.
When mains failure occur the load is always supplied by the inverter but the energy is taken from the batteries without any switching time. The by-pass is used only in case of failures.
3. EMERGENGY MODE:
the load normally is off and it is supplied only when mains failure through the batteries

Additional features integrated in LIDE PLUS series:
Emergency light device for IT regime

- input and output isolating transformers
- isolation controller
- different output breaker to divide the loads on customer specifications
- possibility to have double outputs : permanent and emergency one (on request)

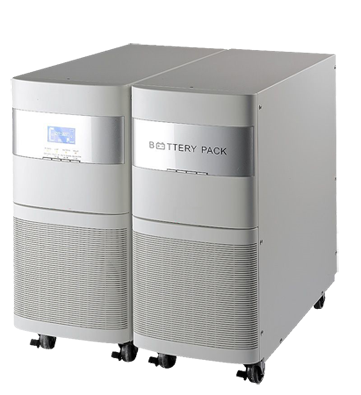

LIDE series

- 120% permanent overload
- batteries 10 years expected life
- battery recharged in 8 hour at 80%
- battery test
- LCD display for unit monitoring
- functioning modalities to be settled during unit definition: switching mode, permanent mode or emergency mode

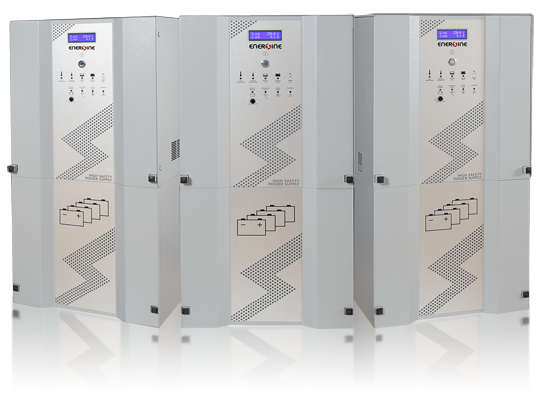

LIDE PLUS series

- 120% permanent overload
- batteries 10 years expected life
- battery recharged in 8 hour at 80%
- battery test
- input and output isolation transformers
- Normal functioning in switching mode, possibility to be settled permanent mode or emergency mode
- Double funtioning permanent and emergency mode on request
- LCD display for unit monitoring
- Output breakers on customer requests
- Isolation controller as option

MODELS POWER BACK UP TIME BATTERIES WEIGHT KG TOWER VERSION BATTERY BOX (LxDxH) TOWER VERSION
(LxDxH)
LIDE MODELS
LIDE 1000 660W 1h / 660W 12x12V 9Ah 40+7 190x421x318 145 x 397 x 220
LIDE 2000 1300W 1h / 1300W 24x12V 9Ah 40+40+13 190x421x318 + 190x421x318 190 x 421 x 318
LIDE 3000 2000W 1h /1700W 24x12V 9Ah 40+40+13 190x421x318 + 190x421x318 190 x 421 x 318
LIDE 6000 4000W 1h / 4000W 60x12V 9Ah 190+22 250x830x576 250 x 592 x 576
LIDE 10000 6600W 1h / 5300W 80x12V 9Ah 125+125+24 260x570x576 + 260x570x576 250 x 592 x 576
LIDE PLUS MODELS
LIDE PLUS 4 750W 1h / 750W 4x12V 33AH 40+70 - 355 x 782+53 x 724
LIDE PLUS 6 1100W 1h / 1100W 4X12V 40AH 50+75 - 355 x 782+53 x 724
LIDE PLUS 9 1740W 1h / 1740W 4X12V 55AH 55+90 - 355 x 782+53 x 724
LIDE PLUS 12 2500W 1h / 2500W 4X12V 85AH 60+120 - 355 x 782+53 x 724
LIDE PLUS 15 2800W 1h / 2800W 4X12V 100AH 70+130 - 355 x 782+53 x 724
LIDE PLUS 18 3350W 1h / 3350W 8X12V 55AH 77+90+90 - 355 x 782+53 x 1034
LIDE PLUS 22 4100W 1h / 4100W 8X12V 75AH 85+115+115 - 355 x 782+53 x 1034
LIDE PLUS 27 5250W 1h / 5250W 8X12V 85AH 92+120+120 - 355 x 782+53 x 1034
