    TRITON T line
    THREE-PHASE UPS - isolating transformer integrated
    Power stations
    Railways
    Military and Marine
    Airports
    Hospitals
    Undergrounds
    Industries
    RANGE:
    from: 10KVA
    to: 800KVA

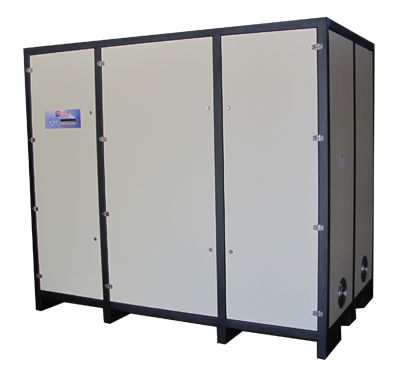

TRITON T

TRITON T series are highly advanced industrial UPS developed in way to ensure total security from problems related to mains.
TRITON T has great reliability and robustness finding their use in most different applications, from civil to military ones. The high reliability is due to the professional level of components used, to its simplicity and to the Made in Italy manufacturing processes.
The management through microprocessor allows many controls to protect the UPS and the connected load under the worst electric conditions, environment and in overload situations. Particular attention is given in safeguarding the connected load through the output insulation transformer that allows galvanic isolation from the mains. If a generating set is present, the TRITON T series limits battery charging current not to overload the generating set.



    IGBT technology with high commutation frequency
    OUTPUT POWER FACTOR φ 0.8
    Very high crest factor 3:1
    ISOLATING TRANSFORMER IN OUTPUT
    ISOLATING TRANSFORMER IN INPUT on request
    STATIC BY-PASS (on request with isolating transformer)
    MANUAL BY-PASS
    Small harmonic distortion for mains (PFC on request)
    AUTOMATIC BATTERY TEST
    PARALLEL CONNECTION up to 6 units
    BACK-UP TIME on customer requirements

DOWNLOAD
MODELS POWER BACK UP TIME BATTERIES WEIGHT KG TOWER VERSION
(LxDxH)
TRITON T 10 10KVA ON REQUEST - 170 800 x 600 x 1300
TRITON T 15 15KVA ON REQUEST - 200 800 x 600 x 1300
TRITON T 20 20KVA ON REQUEST - 250 800 x 600 x 1300
TRITON T 30 30KVA ON REQUEST - 270 800 x 800 x 1300
TRITON T 40 40KVA ON REQUEST - 290 800 x 800 x 1300
TRITON T 50 50KVA ON REQUEST - 310 800 x 800 x 1300
TRITON T 60 60KVA ON REQUEST - 580 800 x 800 x 1300
TRITON T 80 80KVA ON REQUEST - 650 800 x 800 x 1500
TRITON T 100 100KVA ON REQUEST - 800 1000 x 900 x 1900
TRITON T 120 120KVA ON REQUEST - 850 1000 x 900 x 1900
TRITON T 150 150KVA ON REQUEST - 900 1000 x 900 x 1900
TRITON T 200 200KVA ON REQUEST - 1200 1100 x 1100 x 1900
TRITON T 250 250KVA ON REQUEST - 1400 1100 x 1100 x 1900
TRITON T 300 300KVA ON REQUEST - 1800 2000 x 1000 x 1900
TRITON T 400 400KVA ON REQUEST - 2000 2000 x 1000 x 1900
TRITON T 500 500KVA ON REQUEST - 2450 2400 x 1000 x 1900
TRITON T 600 600KVA ON REQUEST - 2600 2400 x 1000 x 1900
TRITON T 800 800KVA ON REQUEST - 3000 3000 x 1000 x 1900
